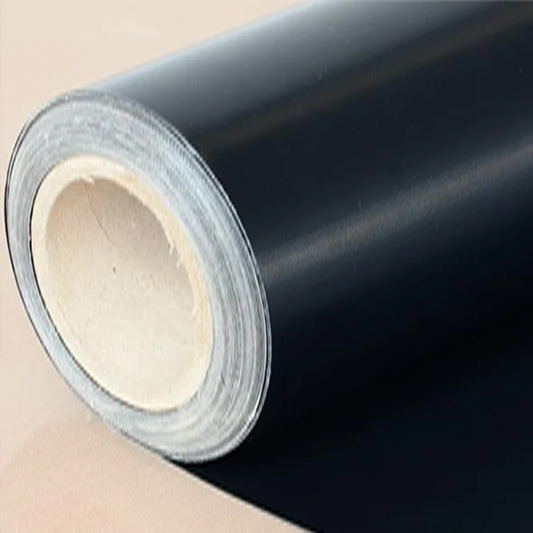

PTFE Fabric Anti-static Series

APTFE Fabric Anti-static Series is a specialized type of PTFE coated fiberglass fabric that has been treated or to reduce or eliminate the buildup of static electricity. This is achieved by incorporating conductive materials or additives into the PTFE coating or fiberglass base, allowing the fabric to dissipate static charges effectively. It combines the excellent properties of PTFE (such as chemical resistance, non-stick surface, and thermal stability) with anti-static functionality, making it suitable for applications where static electricity could pose a risk.

Inquire Now Next Product

Product Details:

1 Characteristics

*Static Dissipation

*Easy to release, non stick surface

*Heat resistant to 500F

*Dimensional stability

*Food grade and can touch food directly

*Chemical resistance

*Excellent belting material

2 Applications

*Solar cells production and module lamination

*Thermal Lamination Manufacturing

*Carbon Fiber Composites

*FPCB Manufacturing

*Release belt for tissue manufacturing

3 Parameters

Product		Product Category		Coating
PTFE GLASS FABRIC		ANTI STATICSERIES		PTFE
PTFE Fabric Anti static Series
Style	Standard Width(mm)	Normal Thickness	Weight	PTFE Content	Tensile Strength Warp/Fill
Style	Please ask for other widths	(mm)	(g/m2)	(%)	(N/cm)
9008BJ	1000/1250	0.08	155	68	102/98
9011BJ	1000/1250	0.11	220	48	240/200
9012BJ	1000/1250	0.12	245	59	240/200
9013BJ	1000/1250/1500	0.13	280	60	240/200
9018BJ	1000/1250/1500	0.18	370	55	320/305
9023BJ	1000/1250/1500/2000/2600	0.23	500	60	420/360
9025BJ	1000/1250/1500/2000/2600	0.25	530	62	460/400
9035BJ	1000/1250/1500/2000/2600	0.35	680	62	540/508
9037BJ	1000/1250/1500/2000/2600	0.37	730	60	540/508
9090B	1500,1600,2250	0.90	1650	51	1240/1180
9038HS	1500	0.38	560	For Insulation Jacket
